The Savaria Vuelift Round Glass is a luxurious panoramic home elevator with a sleek round design and premium low-iron tempered glass panels. This model features a fully integrated hoistway for crystal-clear 360-degree views and minimal construction needs. It supports a higher capacity of 950 lbs (431 kg) and travels at 40 feet per minute (0.2 m/s).
Homeowners along Florida’s Panhandle coast select the Vuelift Round Glass for its ultra-premium glass clarity and spacious feel in modern beach homes, townhouses, and waterfront properties. Coastline Lift, based in Panama City Beach, provides complete turnkey service from site assessment and permitting to professional installation. Projects typically integrate smoothly, with a short ramp option available when a pit is not possible.
Enjoy exceptional transparency and natural light through the glass panels, along with a faster, smoother ride between floors.
Interested in the Vuelift Round Glass for your home?
| Category | Details |
|---|---|
| Model | Vuelift Round Glass (Round+) |
| Capacity | 950 lbs (431 kg) |
| Nominal Speed | 40 fpm (0.2 m/s) |
| Maximum Travel | Up to 50 ft (15.2 m) standard; 55 ft (16.7 m) with variance; up to 6 stops |
| Hoistway Footprint (Glass) | 58.375″ (1483 mm) diameter |
| Pit/Thru Floor Cutout | 59.125″ (1502 mm) diameter |
| Balcony Header Ring | 60.75″ (1543 mm) diameter |
| Pit/Thru Floor Ring | 65.125″ (1654 mm) diameter |
| Clear Cab Size | 53.125″ (1350 mm) diameter |
| Cab Floor Area | 15 sq ft (1.4 sq m) |
| Cab Gate Clear Opening | 27″ +/- 0.5″ (686 mm +/- 13 mm) |
| Standard Cab Height | 84″ (2133 mm) |
| Standard Overhead | 108″ (2743 mm) |
| Optional Cab Height | 80″ (2032 mm) |
| Optional Overhead | 104″ (2641 mm) |
| Power Supply | 230V single phase 50/60 Hz (30 amps) + 120V single phase (15 amps) |
| Motor Size | 3.5 kW (5 HP) |
| Drive System | Winding drum with aircraft cables |
Elevator Electrical Requirements
The Vuelift Round Glass requires two dedicated circuits: 230V single phase 50/60 Hz (30 amps) for the main drive and 120V single phase (15 amps) for controls and lighting. Proper grounding and exclusive use of these lines are essential.
Coastline Lift works with your electrician to meet all Florida electrical codes.
The integrated hoistway design reduces construction needs to round floor cutouts and a small pit (or short ramp alternative). The system supports through-floor or balcony-mount landings with flexible entrance configurations.
Coastline Lift conducts full site assessment, obtains permits, and completes installation while ensuring compliance with local wind-load and building codes.
The Vuelift uses a reliable winding drum drive system with aircraft-grade cables and a 3.5 kW motor for smooth, quiet ascent and descent. The larger footprint and faster speed provide a premium, spacious ride with minimal moving parts.
Standard finish: Sandtex Black powder coat. Optional Velvacoat finishes (Silver, White, Grey) and custom RAL Sandtex colors (over 200 options available).

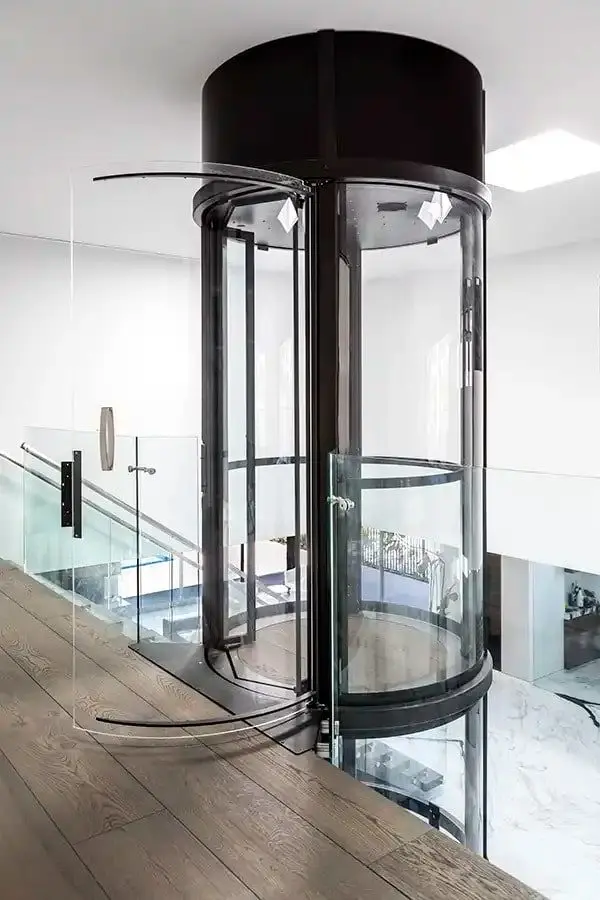

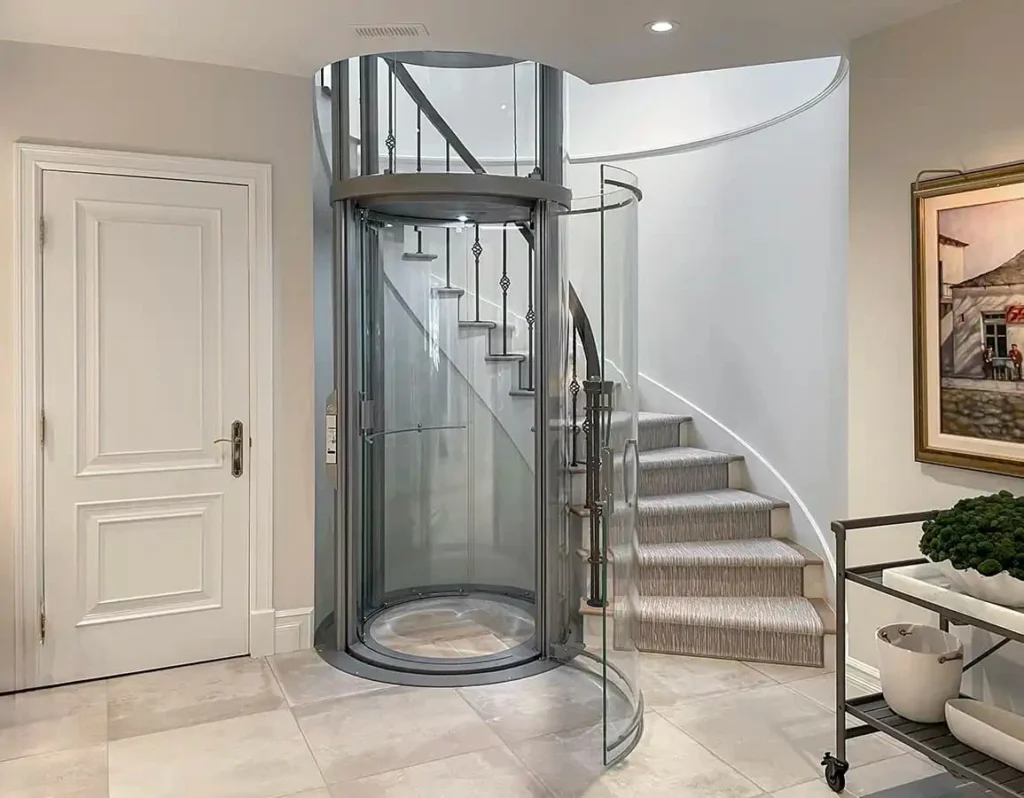

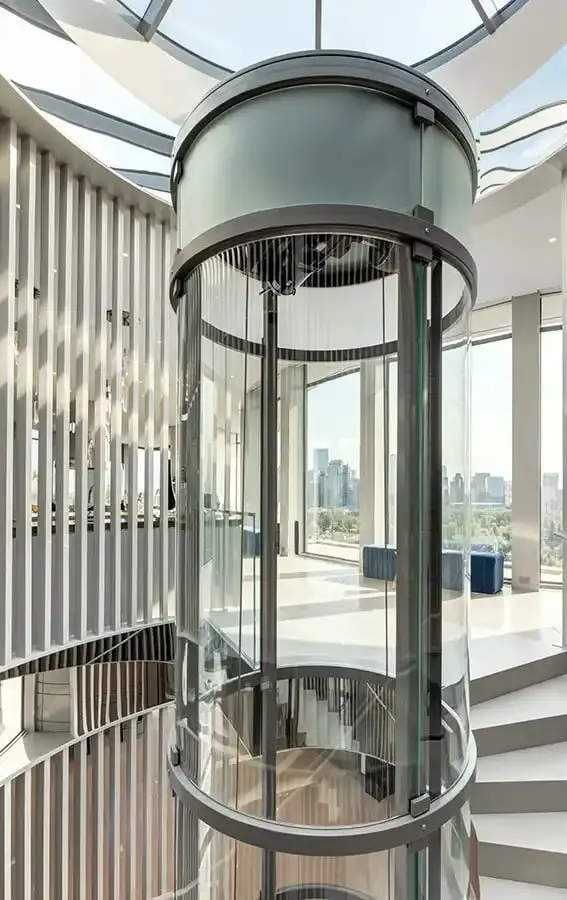

Vuelift Round Glass installations in modern coastal homes • Interior panoramic views during travel • Different entrance configurations • Available finish options
Low-iron tempered glass offers superior clarity, strength, and a premium look with no risk of discoloration.
A small pit is standard for smooth leveling, but a short ramp option is available when pit excavation is not possible.
Up to 6 stops with maximum travel of 50 feet standard (55 feet possible with variance).
Dual circuits: 230V single phase 30 amps for drive and 120V 15 amps for controls.
We offer complete service across the Florida Panhandle: consultation, design support, permitting, professional installation, warranty coverage, maintenance plans, and 24/7 emergency response.
Serving Panama City Beach, Destin, 30A, Santa Rosa Beach, Mexico Beach, and surrounding communities.
Contact Coastline Lift today for a free home evaluation and custom quote.
