The Savaria Vuelift Round Acrylic is a luxurious panoramic home elevator with a sleek round design and premium clear acrylic panels. This model features a fully integrated hoistway for a stunning 360-degree view and minimal construction needs. It supports a capacity of 840 lbs (381 kg) and travels at 32 feet per minute (0.16 m/s).
Homeowners along Florida’s Panhandle coast select the Vuelift Round Acrylic for its elegant architectural centerpiece in modern beach homes, townhouses, and waterfront properties. Coastline Lift, based in Panama City Beach, provides complete turnkey service from site assessment and permitting to professional installation. Projects typically integrate smoothly, with a short ramp option available when a pit is not possible.
Enjoy abundant natural light through the acrylic panels and a smooth, quiet ride between floors.
Interested in the Vuelift Round Acrylic for your home?
| Category | Details |
|---|---|
| Model | Vuelift Round Acrylic |
| Capacity | 840 lbs (381 kg) |
| Nominal Speed | 32 fpm (0.16 m/s) |
| Maximum Travel | Up to 50 ft (15.2 m) standard; 55 ft (16.7 m) with variance; up to 6 stops |
| Hoistway Footprint (Acrylic) | 54 3/8″ (1381 mm) diameter |
| Pit/Thru Floor Cutout | 56″ (1422 mm) diameter |
| Balcony Header Ring | 58″ (1473 mm) diameter |
| Pit/Thru Floor Ring | 62″ (1575 mm) diameter |
| Clear Cab Size | 51 1/8″ (1299 mm) diameter |
| Cab Floor Area | 13 sq ft (1.3 sq m) |
| Cab Gate Clear Opening | 26″ +/- 0.5″ (660 mm +/- 13 mm) |
| Standard Cab Height | 84″ (2133 mm) |
| Standard Overhead | 108″ (2743 mm) |
| Optional Cab Height | 80″ (2032 mm) |
| Optional Overhead | 104″ (2641 mm) |
| Power Supply | 230V single phase 50/60 Hz (30 amps) + 120V single phase (15 amps) |
| Motor Size | 3.5 kW (5 HP) |
| Drive System | Winding drum with aircraft cables |
Vuelift Home Elevator Electrical Requirements
The Vuelift Round Acrylic requires two dedicated circuits: 230V single phase 50/60 Hz (30 amps) for the main drive and 120V single phase (15 amps) for controls and lighting. Proper grounding and exclusive use of these lines are essential.
Coastline Lift works with your electrician to meet all Florida electrical codes.
The integrated hoistway design reduces construction needs to round floor cutouts and a small pit (or short ramp alternative). The system supports through-floor or balcony-mount landings with flexible entrance configurations.
Coastline Lift conducts full site assessment, obtains permits, and completes installation while ensuring compliance with local wind-load and building codes.
The Vuelift uses a reliable winding drum drive system with aircraft-grade cables and a 3.5 kW motor for smooth, quiet ascent and descent. The machine-room-less configuration keeps all components integrated for a clean, efficient operation with minimal moving parts.
Standard finish: Sandtex Black powder coat. Optional Velvacoat finishes (Silver, White, Grey) and custom RAL Sandtex colors (over 200 options available).

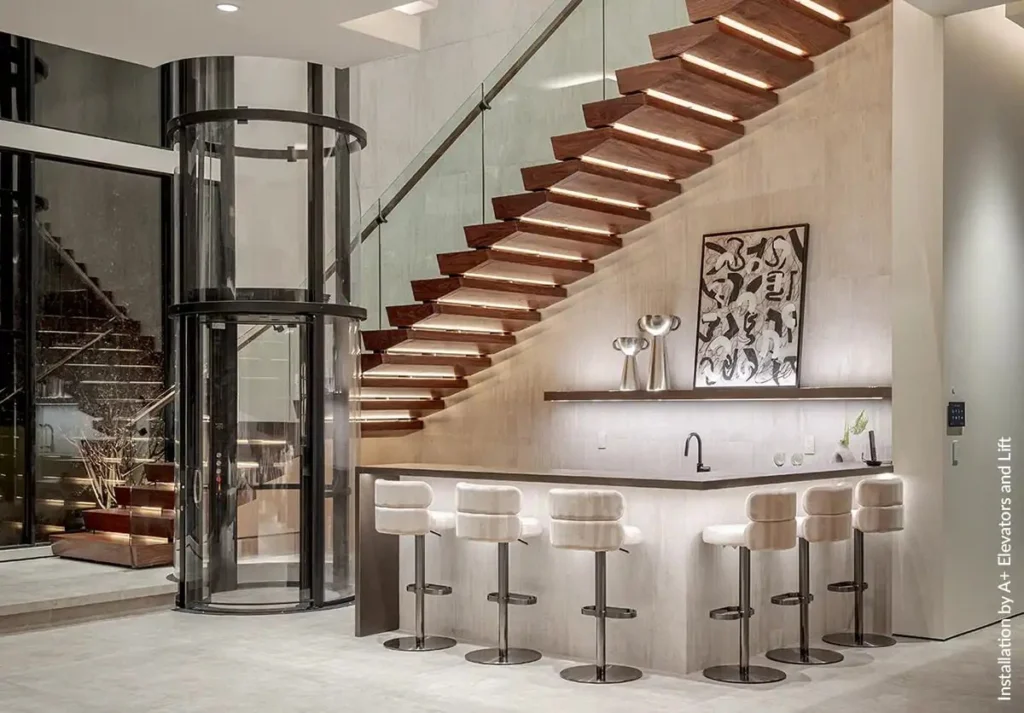

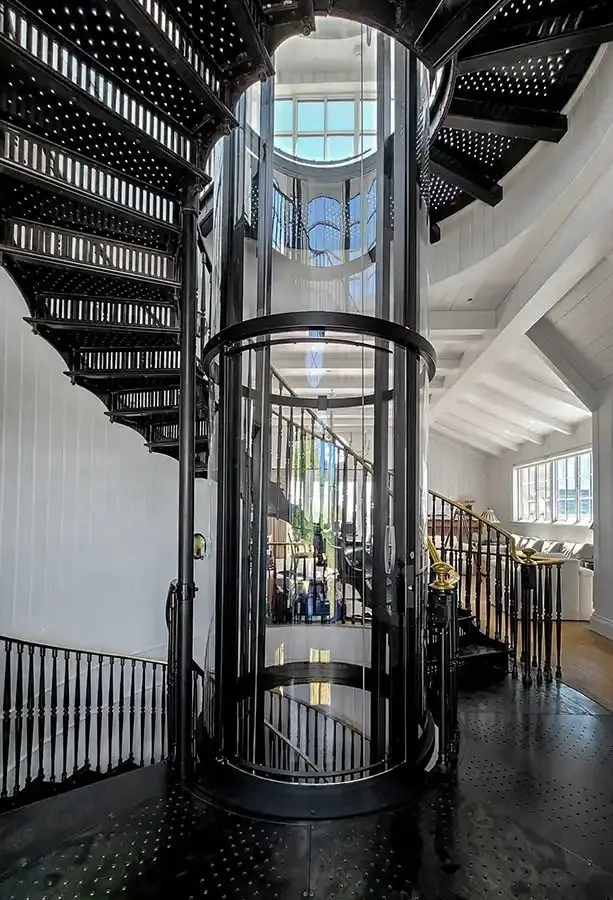

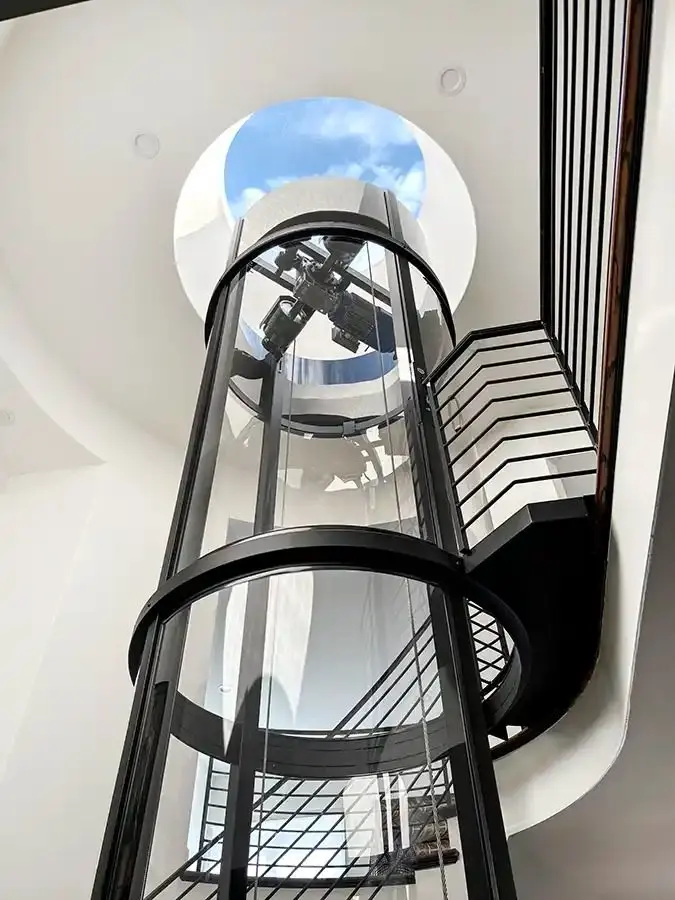

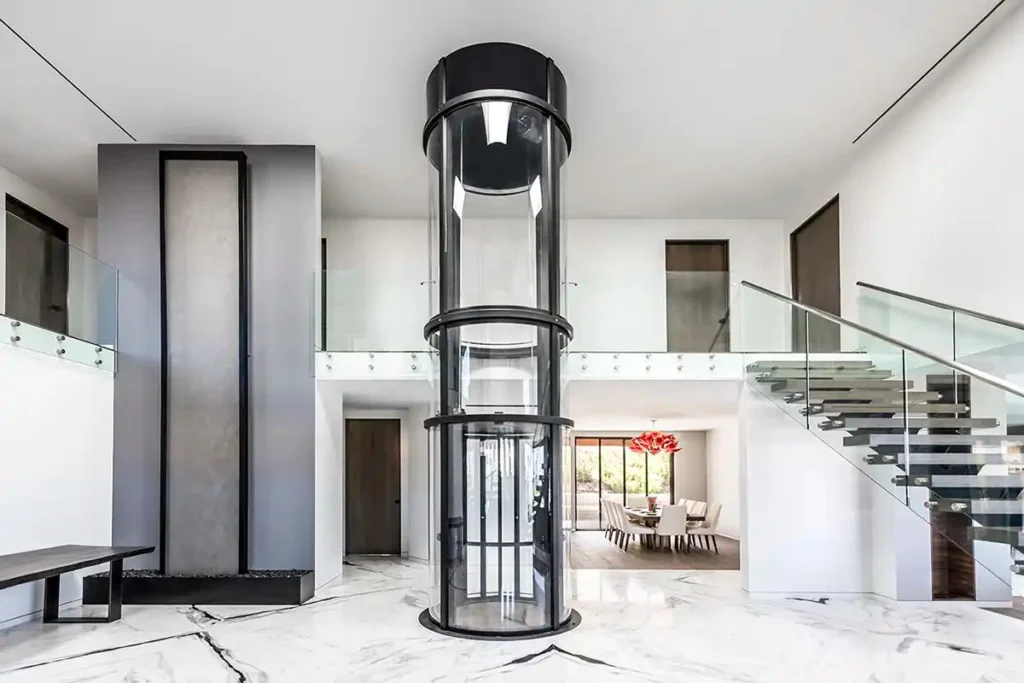

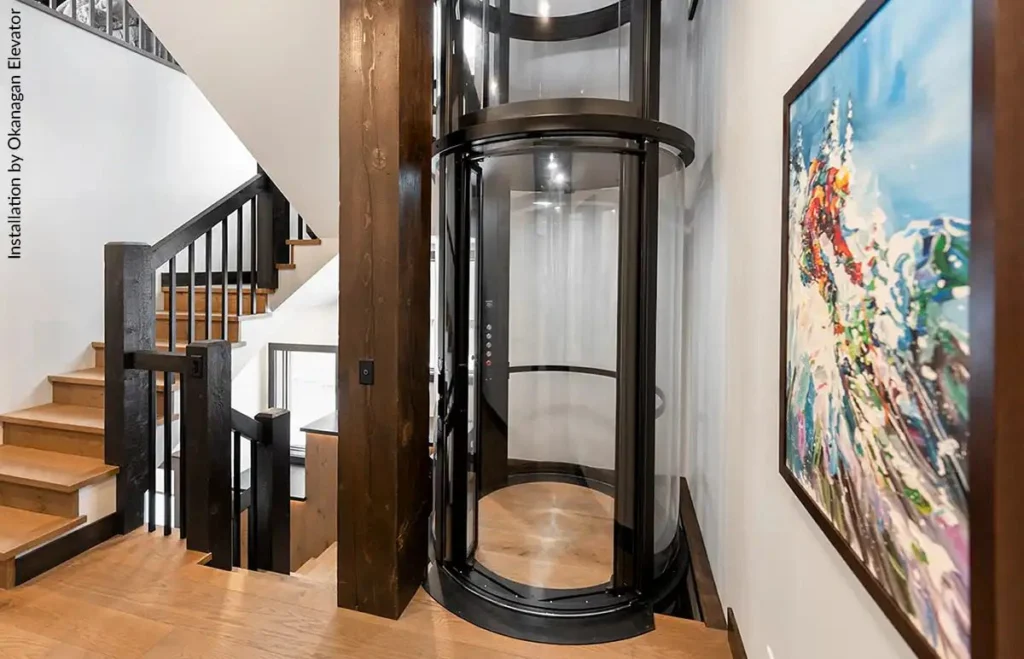

Vuelift Round Acrylic installations in modern coastal homes • Interior panoramic views during travel • Different entrance configurations • Available finish options
No. The premium acrylic is specially formulated to resist UV damage and maintain clarity over time.
A small pit is standard for smooth leveling, but a short ramp option is available when pit excavation is not possible.
Up to 6 stops with maximum travel of 50 feet standard (55 feet possible with variance).
Dual circuits: 230V single phase 30 amps for drive and 120V 15 amps for controls.
We offer complete service across the Florida Panhandle: consultation, design support, permitting, professional installation, warranty coverage, maintenance plans, and 24/7 emergency response.
Serving Panama City Beach, Destin, 30A, Santa Rosa Beach, Mexico Beach, and surrounding communities.
Contact Coastline Lift today for a free home evaluation and custom quote.
