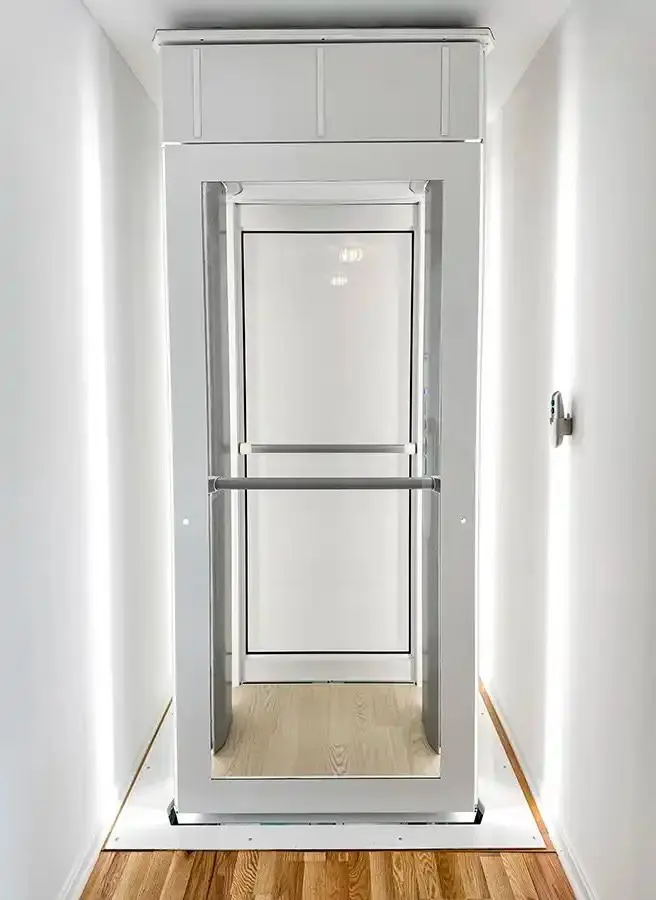

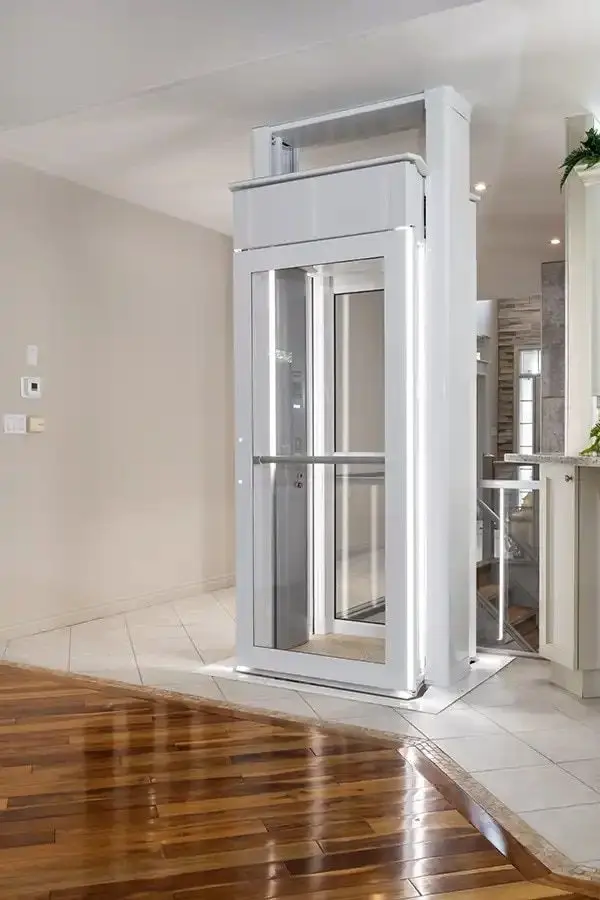

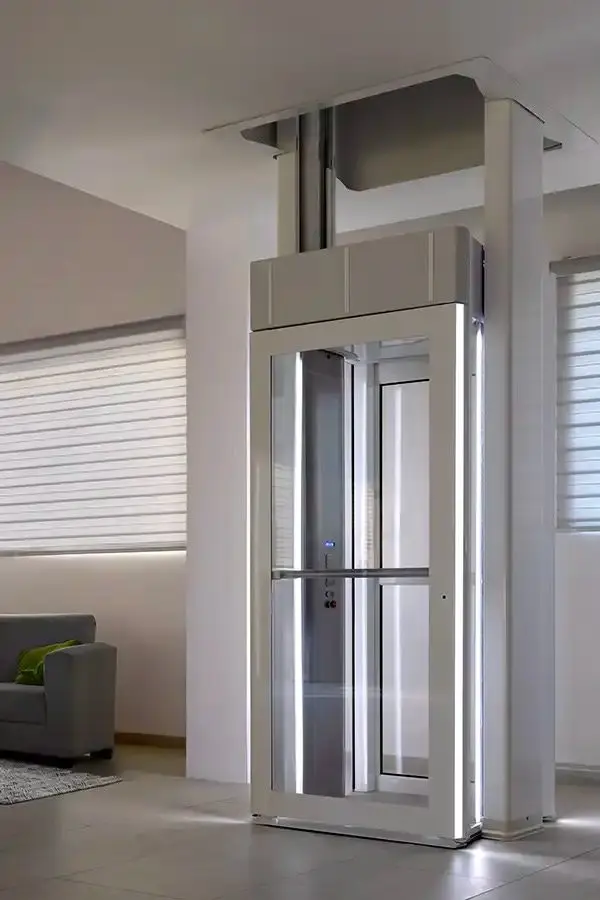

Why Choose the Luma Lift from Coastline Lift

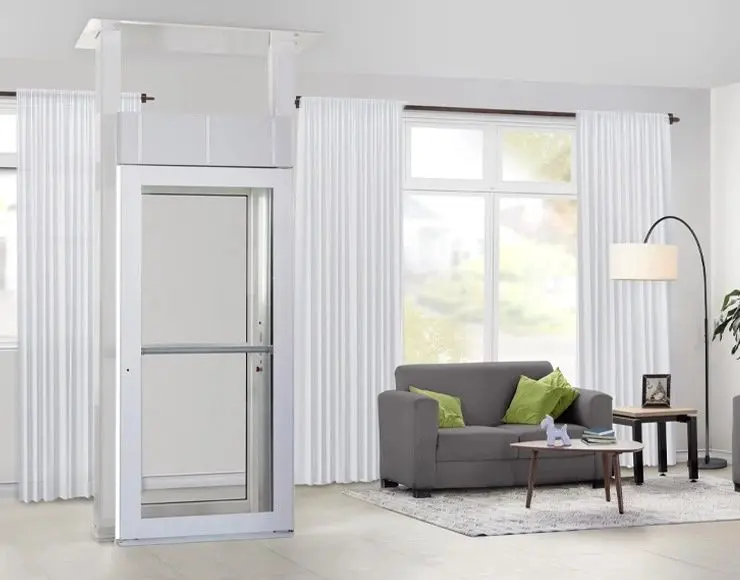

• A slim footprint of 38" x 47" allows placement in compact areas like corners or hallways without overwhelming your layout.
• Quick install with minimal home changes - arrives mostly pre-assembled, requiring only a floor opening and basic bracing.
• Reliable during blackouts - the battery system supports up to 5 full trips, powered by standard outlets for easy charging.

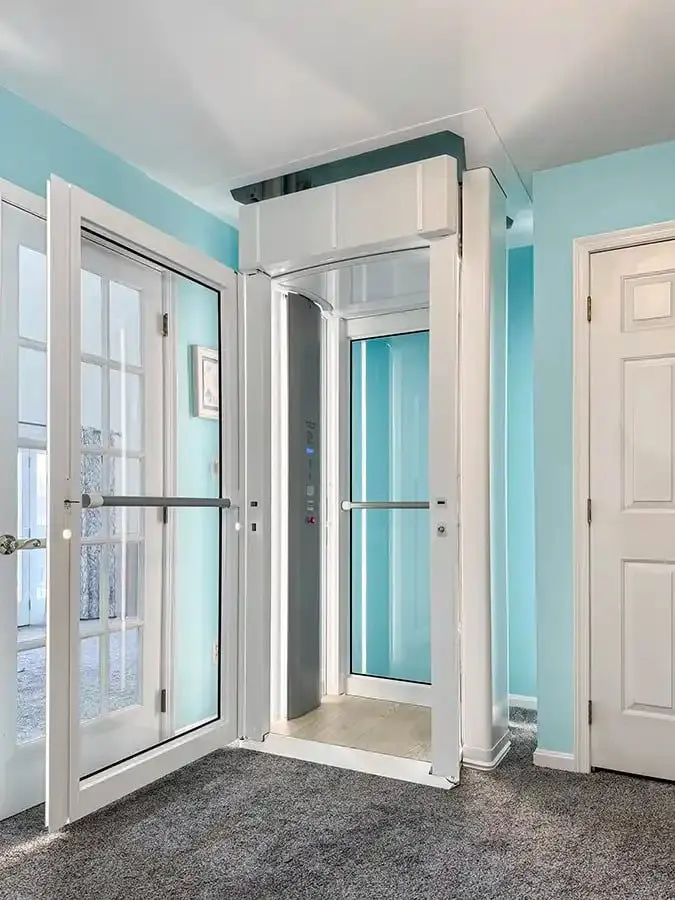

• Attractive enclosed cabin with acrylic sides, LED lights, fan, handrail, and gentle sloped entry for comfort and ease.
• Effortless controls with constant-pressure buttons, status screen, and remotes for straightforward use.
• Durable build suits coastal Florida - resists moisture and corrosion while enhancing home safety and worth.
• Complete service from us: free assessments, code handling, precise setup, and round the clock assistance for Panhandle residents.

Key Features

Technical Specifications

Category	Specification
General
Stops	2
Max Travel	165 1/4" (4200 mm)
Rated Load	400 lbs (181 kg)
Passengers	1 (suitable for wheelchairs or loads)
External Footprint	Approx. 38" x 47"
Cabin Dimensions	29" W x 27 3/4" L x 78 3/4" H
Speed	13 fpm (0.07 m/s)
Pit Required	No - mounts directly on floor
Shaft Required	No
Min Landing Distance	93 3/4"
Min Upper Ceiling	94 1/2"
Min Lower Ceiling	82 3/4"
Through-Floor Opening	46 3/4" x 37 3/4"
Cabin
Entrance Width	Full door size
Internal Dimensions	29" x 27 3/4"
Internal Height	78 3/4"
Lighting and Fan	Recessed LED and ventilation
Door Configurations	Single standard, dual optional
Door Type	Interlocked full panel
Controls	Constant-pressure buttons, 24V system
Mechanical / Electrical
Power	110-240V, 50/60 Hz, 5A single-phase
Motors	24 VDC with battery drive
Batteries	Two 12V, 18 Ah units
Safety
Power Failure	Battery enables up to 5 trips
Emergency Brakes	Overspeed detection
Interlocks	Doors secure at landings
Additional	Obstruction sensors, stop button, alarm

Installation Requirements

The Luma Lift sets up with basic preparations to fit smoothly into your space.

• Ground Level: Flat, load-bearing floor holding at least 1,850 lbs.
• Upper Level: Min ceiling 94 1/2" (2400 mm) for standard cabin.
• Through-Floor Hole: 46 3/4" x 37 3/4" (1186 mm x 956 mm).
• Electrical: Standard outlet near landings for charging - no special wiring.
• Access: Bracing around opening; rails support the unit fully.
• Site Needs: Check floor thickness (8-14" standard); custom options available.

Coastline Lift oversees the process, ensuring quick completion and full Florida compliance while safeguarding your home.

How It Works

A winding drum pulls the cabin upward via hidden ropes when buttons are held. Lowering follows a controlled release. Batteries handle operations without power, and self-supporting rails keep mechanics tidy and quiet.

Options and Upgrades

• Dual doors for pass-through flow.
• Shorter cabin height at 75".
• Custom tweaks for unique setups.

Ready to Elevate Your Home?

The Luma Lift combines beauty and function for better living. Reach out to Coastline Lift for a no-cost review and estimate.
