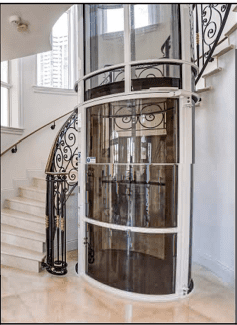

The Savaria Vuelift Mini is a space-saving panoramic home elevator available in acrylic or low-iron glass panels with a round design. This model features a fully integrated hoistway for clear views and the smallest footprint in the Vuelift lineup. It supports a capacity of 500 lbs (227 kg) and travels at 30 feet per minute (0.15 m/s).
Homeowners along Florida’s Panhandle coast choose the Vuelift Mini for its discreet elegance in smaller beach homes, townhouses, condos, or tight retrofits where space is limited. Coastline Lift, based in Panama City Beach, provides complete turnkey service from site assessment and permitting to professional installation. Projects typically integrate quickly, with a shallow 3-inch pit standard and ramp option when needed.
Enjoy natural light and open views in a compact elevator that blends seamlessly into your home.
Interested in the Vuelift Mini for your home?
| Category | Details |
|---|---|
| Model | Vuelift Mini (Acrylic or Glass) |
| Capacity | 500 lbs (227 kg) |
| Nominal Speed | 30 fpm (0.15 m/s) |
| Maximum Travel | Up to 50 ft (15.2 m) standard; 55 ft (16.7 m) with variance; up to 6 stops |
| Hoistway Footprint | 42.5″ (1080 mm) diameter |
| Pit/Thru Floor Cutout | 46″ (1168 mm) diameter |
| Balcony Header Ring | 43.75″ (1111 mm) diameter |
| Pit/Thru Floor Ring | 49.75″ (1264 mm) diameter |
| Clear Cab Size | 39.375″ (1000 mm) diameter |
| Cab Floor Area | 8.25 sq ft (0.75 sq m) |
| Cab Gate Clear Opening | 30″ (762 mm) |
| Standard Cab Height | 78″ (1981 mm) |
| Standard Overhead | 96″ (2438 mm) |
| Pit Depth | 3″ (76 mm) standard; 4″ (102 mm) if habitable space below |
| Power Supply | 230V single phase 50/60 Hz (30 amps) + 120V single phase (15 amps) |
| Motor Size | 1.63 kW (2.2 HP) |
| Drive System | Winding drum with aircraft cables |
Vuelift Mini Electrical Requirements
The Vuelift Mini requires two dedicated circuits: 230V single phase 50/60 Hz (30 amps) for the main drive and 120V single phase (15 amps) for controls and lighting. Proper grounding and exclusive use of these lines are essential.
Coastline Lift works with your electrician to meet all Florida electrical codes.
The integrated hoistway design reduces construction to small round floor cutouts and a shallow 3-inch pit (or short ramp alternative). The system supports through-floor or balcony-mount landings with simple entrance options.
Coastline Lift conducts full site assessment, obtains permits, and completes installation while ensuring compliance with local wind-load and building codes.
The Vuelift Mini uses a reliable winding drum drive system with aircraft-grade cables and a 1.63 kW motor for smooth, quiet ascent and descent. The compact design and manual sliding gate provide efficient operation in tight spaces with minimal moving parts.
Standard finish: Sandtex Black powder coat. Optional Velvacoat finishes (Silver, White, Grey) and custom RAL Sandtex colors (over 200 options available).

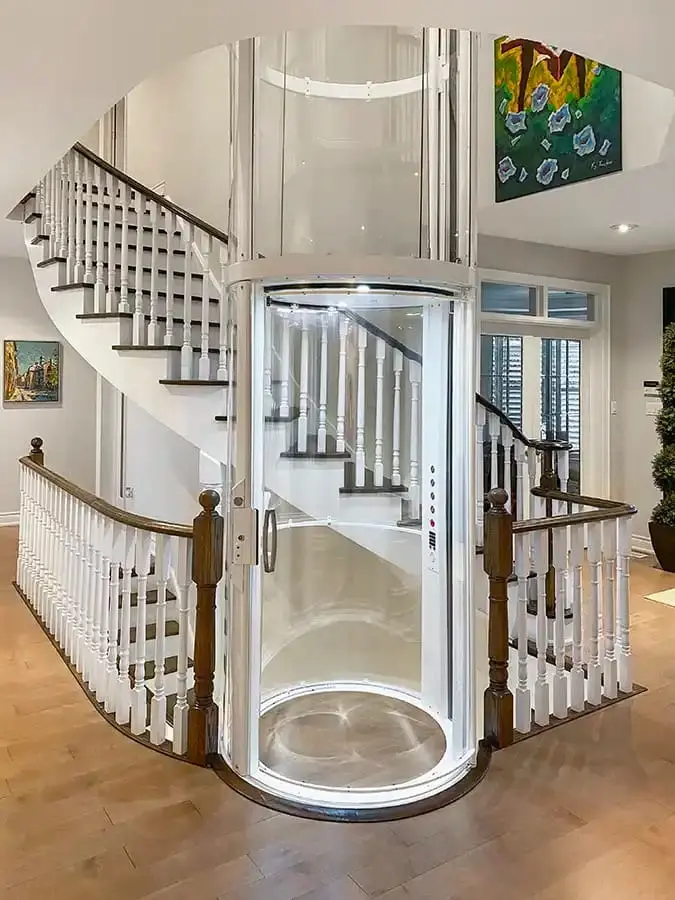

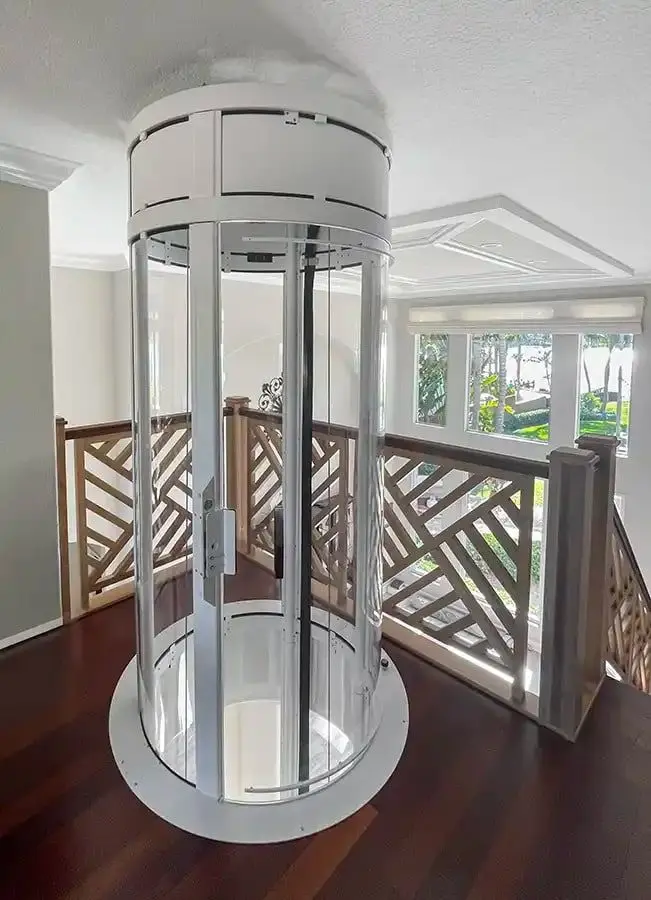

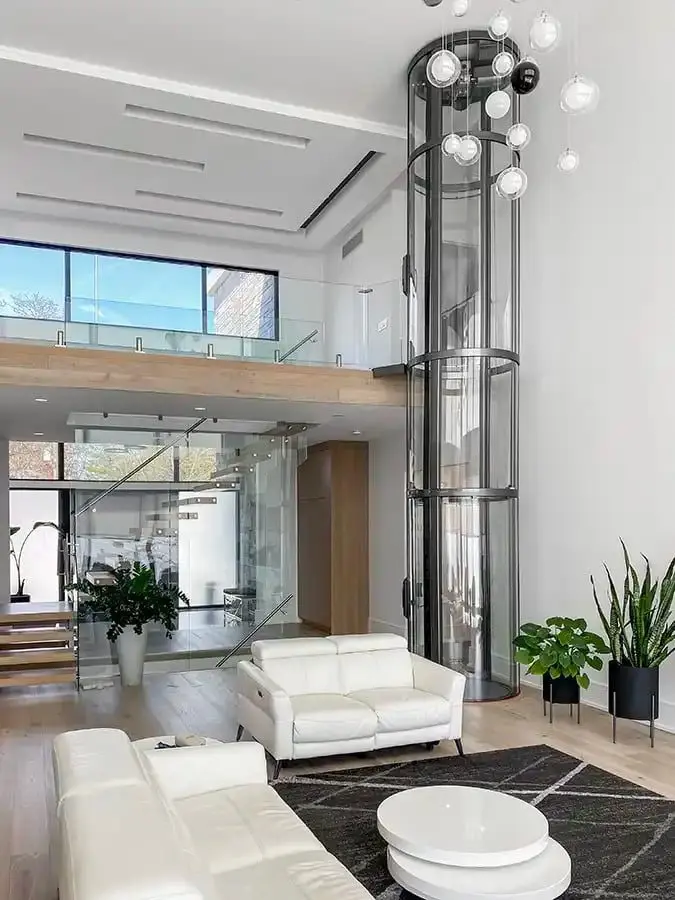

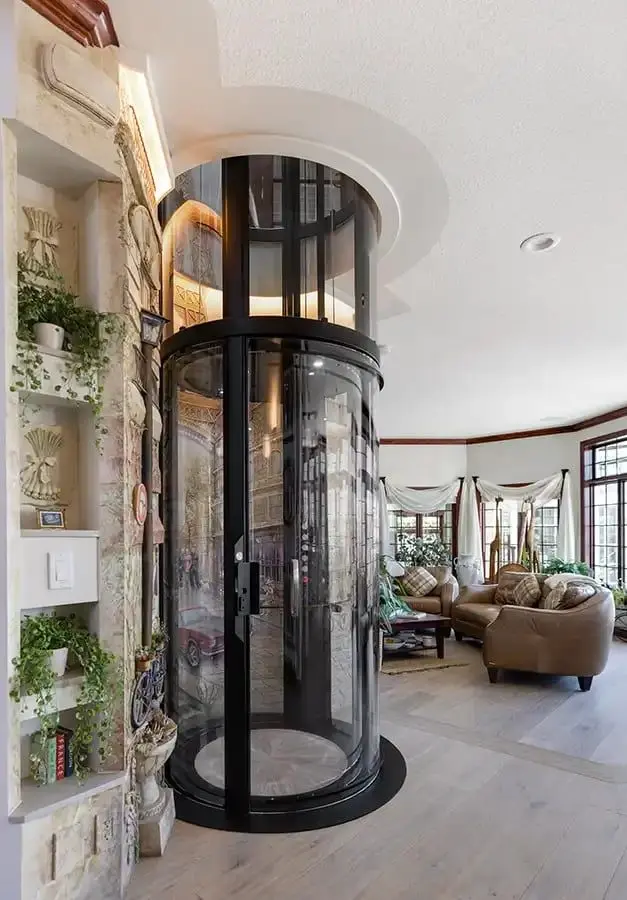

Vuelift Mini installations in compact coastal homes • Interior panoramic views during travel • Acrylic vs. glass panel examples • Available finish options
Yes. Choose premium acrylic for cost-effective clarity or low-iron tempered glass for ultra-premium transparency.
Only a shallow 3-inch pit standard (4 inches if habitable space below), with short ramp option when pit excavation is not possible.
Up to 6 stops with maximum travel of 50 feet standard (55 feet possible with variance).
Dual circuits: 230V single phase 30 amps for drive and 120V 15 amps for controls.
We offer complete service across the Florida Panhandle: consultation, design support, permitting, professional installation, warranty coverage, maintenance plans, and 24/7 emergency response.
Serving Panama City Beach, Destin, 30A, Santa Rosa Beach, Mexico Beach, and surrounding communities.
Contact Coastline Lift today for a free home evaluation and custom quote.
