Why Coastal Florida Homeowners Choose the PVE 37 Residential Home elevator

• Room for two. Comfortably carries two passengers or one person with luggage/mobility aid.
• Fits most homes. 37-inch diameter with options for same-side or walk-through door configurations.
• Minimal structural work. Just a 39-inch finished through-floor hole.
• Fast, clean installation. Typically 2–3 days with full protection of floors and walls.
• Built for salt air and humidity. Aluminum and polycarbonate construction resists corrosion. Hurricane-rated brackets available.
• Energy efficient. Electricity required only for ascent; descent needs no power.
• Full panoramic cabin. Transparent walls bring in natural light and unobstructed views.
• Boosts accessibility and resale value. Great for families or future-proofing your Emerald Coast property.
• Trusted local expertise. Coastline Lift knows Panhandle wind-load codes, elevated foundations, and waterfront requirements.

Key Features

Pneumatic Vacuum Elevator 37 Technical Specifications

Category	Details
Model	PVE37, Two Passengers
Rated Load	450 lbs (205 kg)
Speed	30 fpm (0.15 m/s)
External Cylinder Diameter	37″ (940 mm)
Internal Cabin Diameter	29 ½″ (750 mm)
Cabin Height	79″ (2007 mm)
Entrance Width	20 ½″ (521 mm)
Door Height	77 ¾″ (1975 mm) standard. 79 ½″ (2020 mm) to top of door closer
Door Configuration	Same-side (in-line) or walk-through (180°). Top-left hinge. Left swing from inside. One door per landing
Maximum Travel	Up to 50 feet (typically 2–5 stops)
Minimum Overhead Clearance	Standard unit: 107″ (2719 mm) Split unit: 97″ (2464 mm)
Floor Penetration Required	39″ (991 mm) finished hole
Power Supply	220 VAC, 60/50 Hz, single phase, 30 AMP
Drive System	5 turbine motors in pump box. Total 5 kW. Pneumatic vacuum

Electrical Requirements
The PVE37 requires a dedicated 220 VAC (exact, no exceptions), single-phase, 30-amp circuit (L1, L2, Ground) using AWG #10 (6 mm²) conductors and an exclusive 30A thermo-magnetic switch.

• 210 VAC or 230 VAC is not acceptable. Voltage fluctuations are not covered under warranty.
• A Buck Boost transformer or voltage stabilizer is strongly recommended.
• Primary disconnect and female receptacle provided by homeowner at top center of elevator (or remote head for split units).
• Supplied 4-foot power cord with angled plug (Pass & Seymour 2869 or equivalent: 30/50 A, 250 V, black, cord diameter 0.56–1.1 in.).
• Matching flush receptacle: Pass & Seymour 3801 or equivalent.
• Telephone jack (if added) must be isolated near power supply.

Coastline Lift coordinates with your electrician for full Florida code compliance. We recommend they contact us before starting.

Home Elevators PVE 37 Installation Requirements

Standard Model

• Minimum height at ground floor: 92″ (2.34 m)
• Minimum height at upper floor(s): 107″ (2.70 m)
• Finished through-floor hole diameter: 39″ (991 mm), all holes perfectly aligned for 3+ stops
• Ceiling perforation at least 2″ (5 cm) from walls for tripod access
• Access opening for cylinders: 39″ wide x 92″ long (via door or window)
• Ceiling hook rated for 1,800 lbs to lift cylinders during install (if no hook possible, upper floor height must be at least 109″ / 2.77 m)
• Noise note: Larger rooms reduce turbine sound; avoid very small enclosed spaces

Split Unit Model (Remote Turbine Location)

• All standard requirements apply except:
• Minimum upper floor height: 97″ (2.47 m)
• Remote head unit space needed: 34″ L x 24″ W x 24″ H (0.86 m x 0.61 m x 0.61 m)
• Maximum distance from elevator: 30 linear feet (10 m)
• Two 4″ (10 cm) PVC pipes required between cylinder split plate and remote head
• Air intake must come from interior of home (proper housing with minimum 6″ clearance on all sides)
• Electrical supply directly to remote head location

Coastline Lift performs full site assessment to confirm your home meets these requirements and handles all permitting and code compliance.

How the PVE37 Operates

Five turbine motors create vacuum above the cabin for ascent. Descent occurs by controlled pressure release, no electricity required to go down. The straightforward pneumatic system has minimal moving parts, resulting in exceptional reliability and very low maintenance.

Safety Features

• Automatic descent to ground level at reduced safety speed during power failure
• Mechanical emergency brakes engage within two inches of freefall (vacuum loss or failure)
• Electromechanical interlocks on every landing door
• 24-volt low-voltage cabin controls
• Alarm system with optional in-cabin telephone

All units meet or exceed ASME A17.7 safety standards.

Available Options & Customizations

• Cylinder colors: Anodized Silver, Black, White, Light Gray, Dark Gray, Taupe
• Split-unit configuration for lower overhead
• Folding cabin seat
• In-cabin telephone and alarm
• Keyed controls
• Solar power package
• Hurricane-rated anchoring brackets (recommended for coastal Florida)

Cylinder Colors

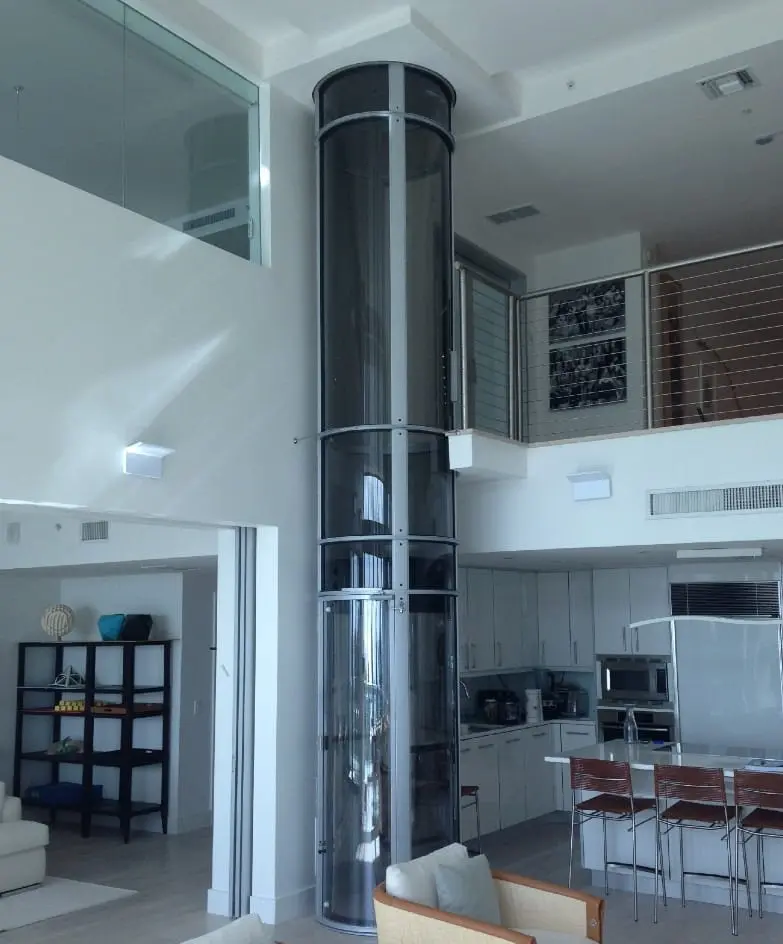

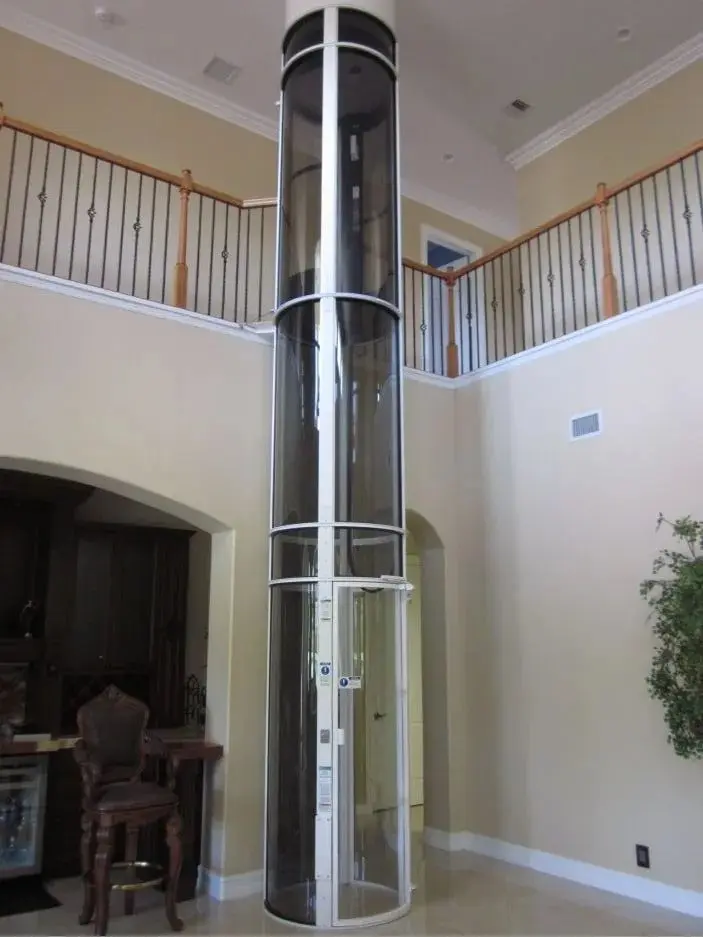

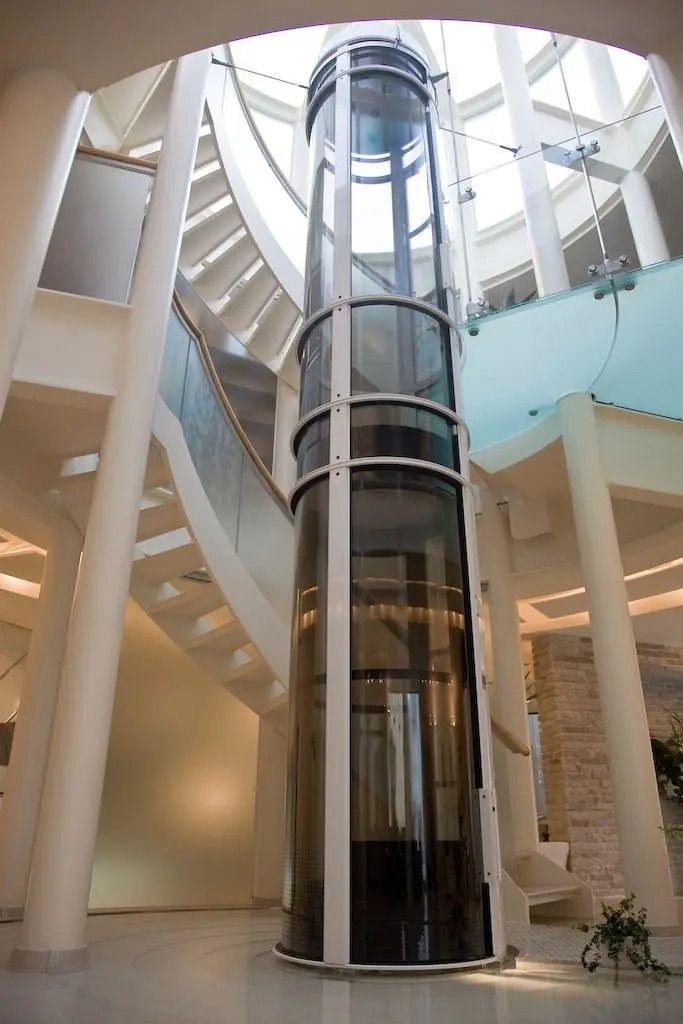

Gallery

Frequently Asked Questions

Is the PVE37 wheelchair accessible?

The 20 ½-inch entrance and cabin dimensions can accommodate some narrow mobility aids with assistance, but it is not rated for full wheelchair access. Contact us for a site evaluation or consider the larger PVE52 model.

What maintenance is needed?

Annual inspections recommended. Major seal replacement typically every 5 years or 15,000 rides.

Will it work in power outages or storms?

Yes. It safely descends to ground level and remains secure until power returns.

How much power does it use?

Comparable to larger household appliances, only during ascent.

Full-Service Support from Coastline Lift

We provide complete turnkey service across the Florida Panhandle: consultation, permitting, installation, warranty, maintenance plans, and 24/7 emergency response.
Serving Panama City Beach, Destin, 30A, Santa Rosa Beach, Mexico Beach, and surrounding areas.

Contact us today for a free home evaluation and quote.
