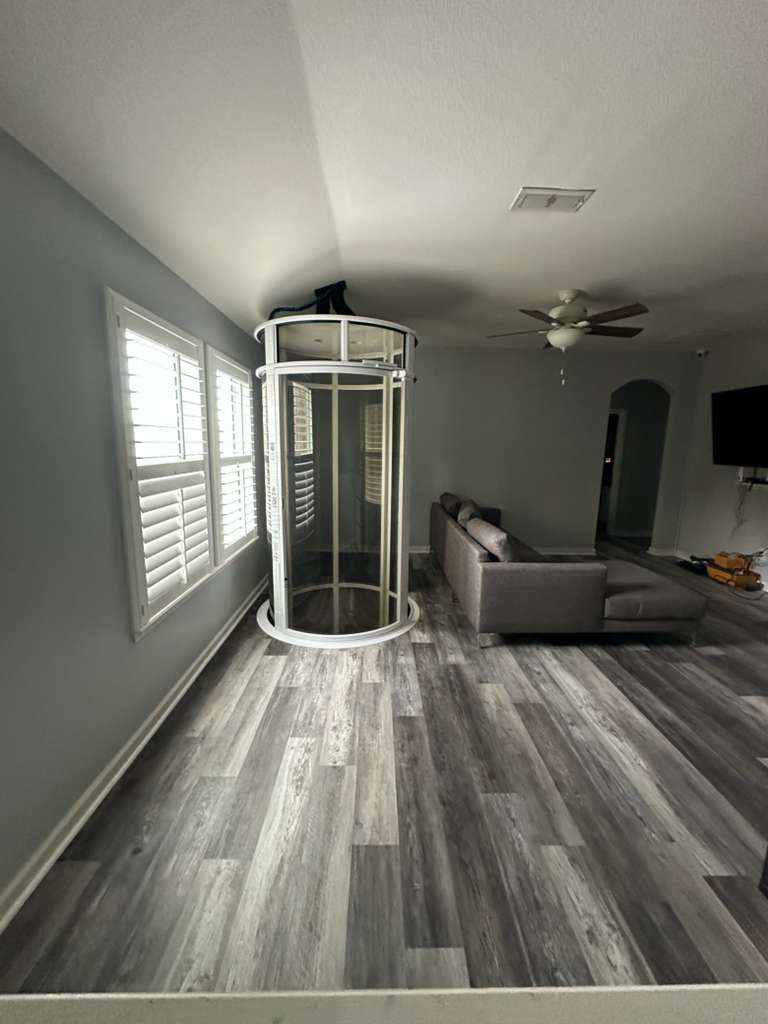

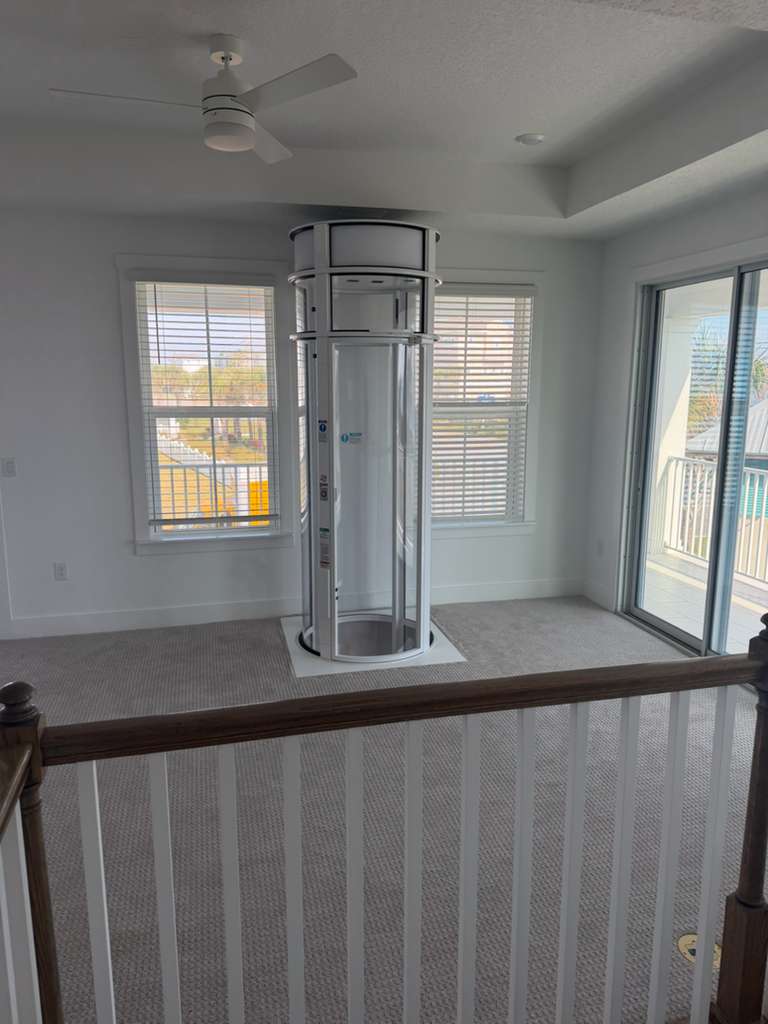

Why Choose the Level Up Whisper-CY300

• Generous Space: An external diameter of 53.5 inches offers ample room, including wheelchair accessibility for enhanced inclusivity.
• Simplified Installation: Bypasses extensive remodeling - no excavation or reinforcements needed, suiting both new builds and renovations.
• Ultra-Quiet Ride: The innovative winding drum mechanism operates with minimal noise, ensuring a serene household environment.
• Efficient Power Usage: Utilizes standard residential electricity, promoting sustainability without spiking energy costs.
• All-Around Visibility: Transparent panoramic enclosure maximizes light flow and scenic enjoyment throughout your space.
• Superior Convenience: Ideal for multi-generational homes, aiding seamless movement for all ages and abilities.
• Trusted Local Service: Coastline Lift delivers expert guidance, from design to long-term care, exclusively in Florida.

Key Features

Technical Specifications

Category	Details
External Cylinder Diameter	53.5" (1359 mm)
Bottom Floor Cylinder Height	92" (2337 mm)
Rated Load	825 lb (408 kg)
Speed	32 fpm (standard) or 40 fpm (optional)
Minimum Floor to Floor Height	93.5" (2375 mm) standard; 96.5" (2451 mm) with speed package
Minimum Floor to Ceiling Height	81" (2057 mm) for door opening; 83" (2108 mm) overall
Minimum Overhead	105" (2667 mm) for 32 fpm; 108" (2743 mm) for 40 fpm
Door Height	77" (1956 mm)
Door Height with Closer	79" (2007 mm)
Through-Floor Opening Size	56" (1422 mm)
Pit or Hoistway Required	No
Installation Entry Access	56" (1422 mm)
Power Supply	220V-240V, 8A, Single Phase; 110V Lighting Circuit
Motors	1.1 kW Worm Geared Motors
Cables	1/4" 7x19 Galvanized Steel Cables
Drums and Brake	Dual Winding Drums; Single-Disc Spring Setting Brake

Installation Requirements

General Requirements

• Minimum height at ground floor: 92 inches (2.34 m).
• Minimum height at upper floors: 105 inches (2.70 m) for 32 fpm; 108 inches (2.74 m) for 40 fpm optional speed.
• Finished through-floor hole diameter: 56 inches (1.42 m).
• Access opening for elevator sections: 56 inches (1.42 m) in diameter and 93.5 inches (2.37 m) in height, achievable through doors or windows.
• Ceiling hook rated for 1,800 lbs to hoist sections; if unavailable, elevate top-floor minimum height to 109 inches (2.75 m).
• Ensure ceiling perforation is no less than 2 inches (5 cm) from any wall to fit the installation tripod.

Electrical Requirements

• Independent 220VAC-240VAC single-phase supply using AWG No. 10 (6 mm) conductors, with ground and a dedicated 15A thermo-magnetic switch for the elevator only.
• 1-phase, 3-wire configuration (L1, L2, Ground) operating at 60/50 Hz.
• Homeowner or electrician must supply one 220V, 15-amp fused disconnect and one 110V lighting circuit disconnect, sited according to local Authority Having Jurisdiction (AHJ).
• Mount controller in direct line of sight to the elevator, providing at least 36 inches of clear working space ahead.
• Install an isolated phone line with a jack proximate to the power source.
• Installation of a buck-boost transformer or voltage stabilizer is highly encouraged to shield electrical parts from voltage variations.

How the Level Up Whisper-CY300 Operates

The Whisper-CY300 leverages a sophisticated dual winding drum system, driven by twin 1.1 kW worm-geared motors connected via robust galvanized steel cables. This configuration winds the cables to raise the cabin with exceptional smoothness, while a spring-set disc brake precisely governs descents for safety and control. Absent any hydraulic elements, it offers superior reliability, reduced upkeep, and energy efficiency, supporting travels up to 38 feet across 2 to 4 stops in residential settings.

Safety Features

• Integrated UPS battery system for uninterrupted operation amid power interruptions.
• Emergency manual lowering mechanism for controlled evacuations.
• Robust mechanical safeties to avert any unintended falls.
• Electric door interlocks at each stop for secure, foolproof entry.
• Onboard alarm and cabin-integrated telephone for rapid emergency response.

Available Options and Customizations

Customize your Whisper-CY300 to perfectly align with your interior:

• Core color palette: Black, Silver, Gray, Taupe, White.
• Bespoke shades via your chosen RAL color codes.
• Optional enhancements, such as advanced speed packages or specialized controls, available upon consultation to suit unique needs.

Frequently Asked Questions

Is the Whisper-CY300 wheelchair-friendly?

Yes, its spacious 44-inch internal diameter and 32-inch entrance make it fully accessible for standard wheelchairs, promoting independence.

How frequently should maintenance occur?

We suggest yearly professional servicing to maintain optimal function, with resilient components designed for extended longevity under regular use.

What if there's a power failure?

The built-in UPS enables a safe, automatic descent to the base level, ensuring passenger security.

Is it power-hungry?

No, it functions like a common appliance, drawing energy mainly on ascents for economical, eco-friendly performance.

Full-Service Support from Coastline Lift

At Coastline Lift, we offer holistic solutions, encompassing site surveys, precision installations, and proactive maintenance. Our mission is to transform home mobility with elite products like the Whisper-CY300. Contact us for a no-obligation quote, personalized to your Florida abode.
