Why Choose Vuelift Octagonal Residential Elevator

• Distinctive octagonal panoramic design. Premium acrylic panels provide wide views and fill your space with natural light.
• Modern architectural statement. The angular octagonal shape adds a unique focal point to open coastal interiors.
• Flexible pit options. 4 to 12 inch pit standard, with short ramp alternative when excavation is not feasible.
• Versatile entrance layouts. Supports same-side (Type 1), opposite-side (Type 2), 90-degree (Type 3R), and three-entrance (Type 6) configurations.
• Smooth winding drum drive. Aircraft cables and a 3.5 kW motor deliver quiet, stable performance.
• Durable for coastal conditions. High-quality acrylic resists discoloration and meets or exceeds strength codes; finishes handle humidity well.
• Increases accessibility and property value. Ideal for aging in place or multi-level Emerald Coast homes.
• Local expertise you can trust. Coastline Lift understands Panhandle codes, wind-load standards, and waterfront installations.

Octagonal Vuelift Elevator Key Features

Octagonal Elevator Technical Specifications

Category	Details
Model	Vuelift Octagonal Acrylic
Capacity	840 lbs (381 kg)
Nominal Speed	32 fpm (0.16 m/s)
Maximum Travel	Up to 50 ft (15.2 m) standard; 55 ft (16.7 m) with variance; up to 6 stops
Hoistway Footprint	47.75″ x 47.75″ (1213 mm x 1213 mm)
Pit/Thru Floor Cutout	49.625″ x 49.625″ (1261 mm x 1261 mm)
Balcony Header Ring	51.375″ x 51.375″ (1305 mm x 1305 mm)
Pit/Thru Floor Ring	55.375″ x 55.375″ (1407 mm x 1407 mm)
Clear Cab Size	44″ x 42.125″ (1118 mm x 1070 mm)
Cab Floor Area	12 sq ft (1.2 sq m)
Cab Gate Clear Opening	26″ +/- 0.5″ (660 mm +/- 13 mm)
Standard Cab Height	84″ (2133 mm)
Standard Overhead	108″ (2743 mm)
Optional Cab Height	80″ (2032 mm)
Optional Overhead	104″ (2641 mm)
Short Cab Height	76.5″ (1943 mm)
Short Cab Overhead	96″ (2438 mm)
Pit Depth	4 to 12 inches (102 to 305 mm)
Power Supply	230V single phase 50/60 Hz (30 amps) + 120V single phase (15 amps)
Motor Size	3.5 kW (5 HP)
Drive System	Winding drum with aircraft cables

Home Elevator Electrical Requirements
The Vuelift Octagonal Acrylic requires two dedicated circuits: 230V single phase 50/60 Hz (30 amps) for the main drive and 120V single phase (15 amps) for controls and lighting. Proper grounding and exclusive use of these lines are essential.

Coastline Lift works with your electrician to meet all Florida electrical codes.

Installation in Florida Coastal Homes

The integrated hoistway design reduces construction to square floor cutouts and a 4 to 12 inch pit (or short ramp alternative). The system supports through-floor or balcony-mount landings with flexible entrance configurations.

Coastline Lift conducts full site assessment, obtains permits, and completes installation while ensuring compliance with local wind-load and building codes.

How the Savaria Vuelift Octagonal Acrylic Operates

The Vuelift uses a reliable winding drum drive system with aircraft-grade cables and a 3.5 kW motor for smooth, quiet ascent and descent. The machine-room-less configuration keeps all components integrated for a clean, efficient operation with minimal moving parts.

Safety Features

• Winding drum drive with over-speed governor and safety brakes
• Electromechanical interlocks on all doors and gates
• Emergency battery backup for descent, lighting, and alarm
• Compliant with ASME A17.1 / CSA B44 residential elevator safety codes

Available Options & Customizations

• Entrance configurations: Type 1 (same side), Type 2 (opposite side), Type 3R (90 degree right), Type 6 (three entrances)
• Optional short cab for reduced overhead
• Machine-room-less (MRL) controller in header
• Premium frame and gate finishes (powder coat, anodized, custom colors from 2025 options)
• LED lighting upgrades and hardware packages
• Short ramp for no-pit installations
• Hurricane-rated anchoring (recommended for Panhandle coastal areas)

Frame & Gate Finishes

Standard finish: Sandtex Black powder coat. Optional Velvacoat finishes (Silver, White, Grey) and custom RAL Sandtex colors (over 200 options available).

Gallery

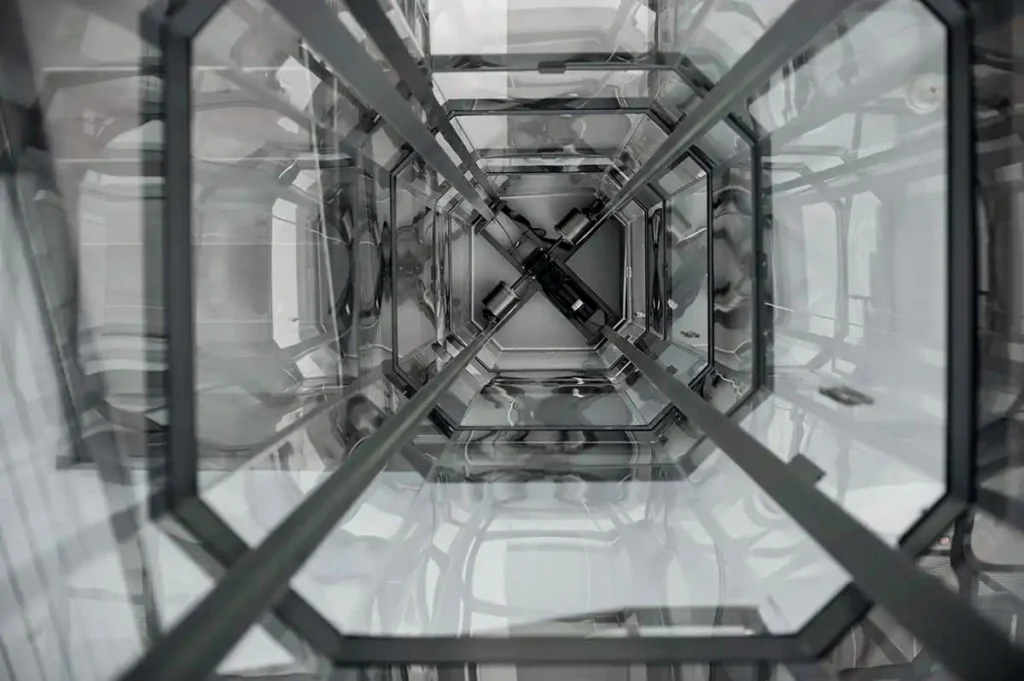

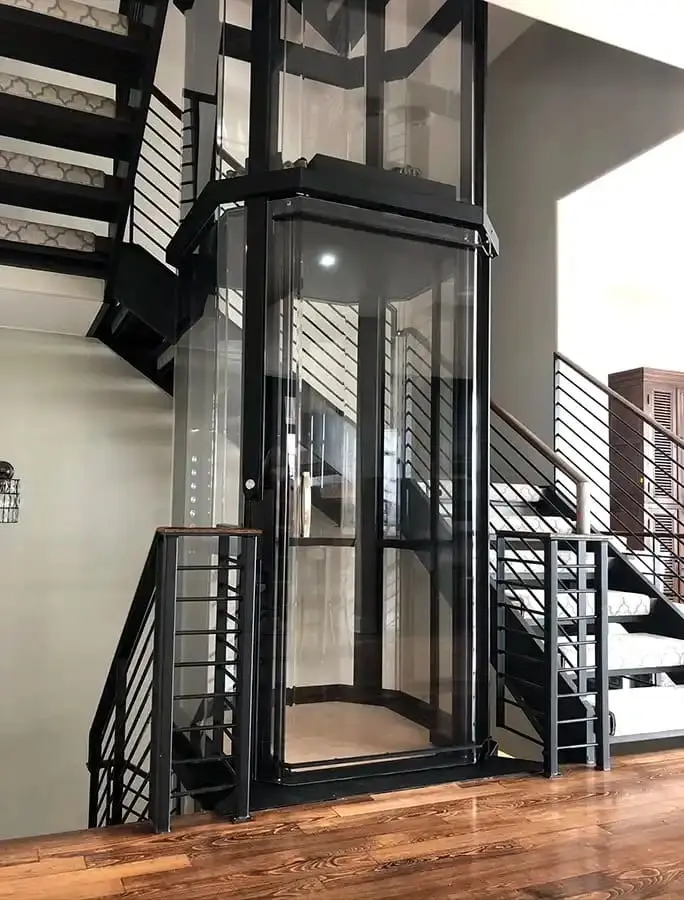

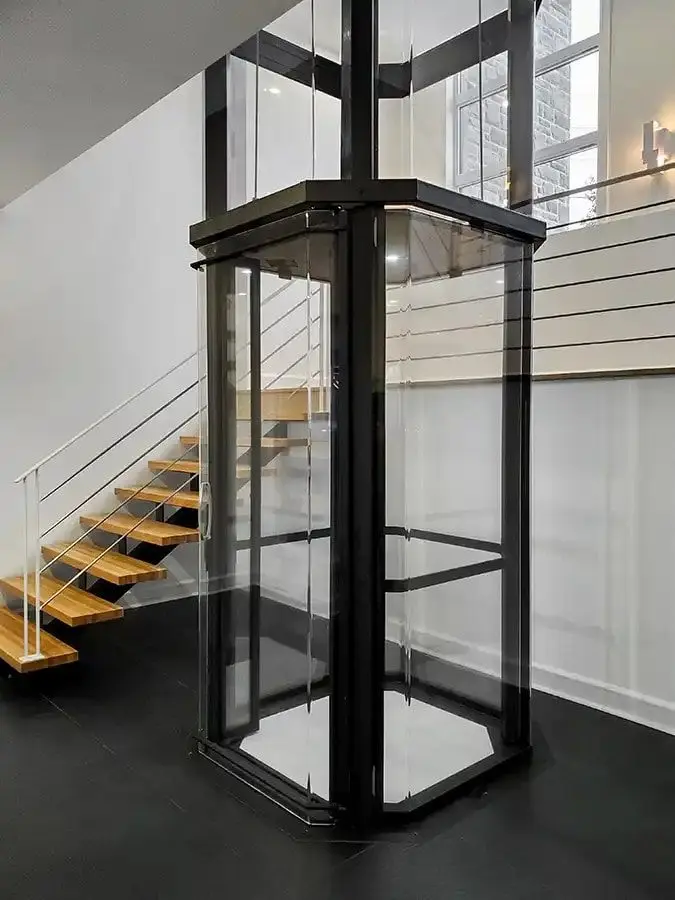

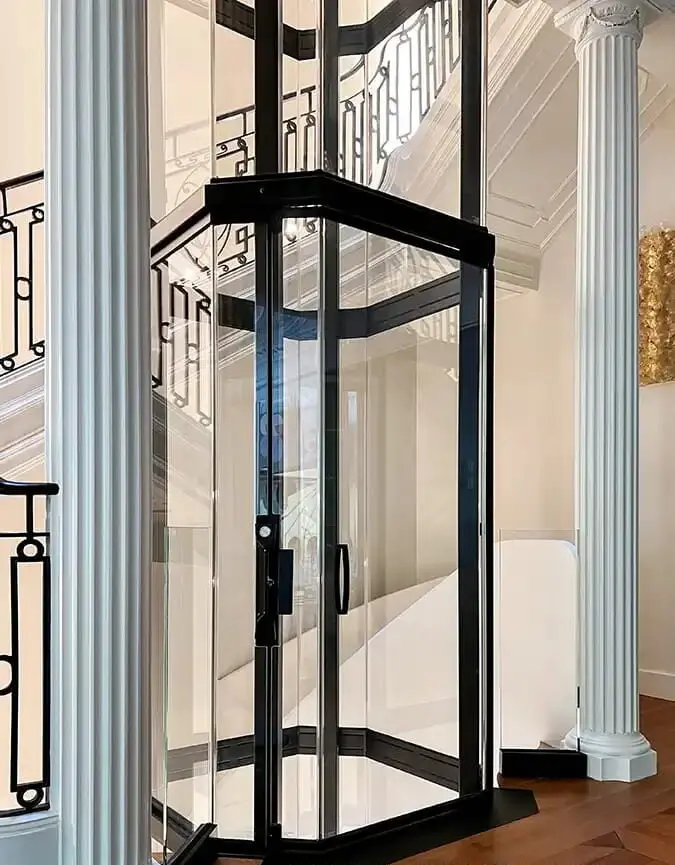

Vuelift Octagonal Acrylic installations in modern coastal homes • Interior panoramic views during travel • Different entrance configurations • Available finish options

Frequently Asked Questions

Will the acrylic panels yellow or discolor?

No. The premium acrylic is specially formulated to resist UV damage and maintain clarity over time.

Is a pit required?

A 4 to 12 inch pit is standard for smooth leveling, but a short ramp option is available when pit excavation is not possible.

How many floors can it serve?

Up to 6 stops with maximum travel of 50 feet standard (55 feet possible with variance).

What power does it need?

Dual circuits: 230V single phase 30 amps for drive and 120V 15 amps for controls.

Full-Service Support from Coastline Lift

We offer complete service across the Florida Panhandle: consultation, design support, permitting, professional installation, warranty coverage, maintenance plans, and 24/7 emergency response.
Serving Panama City Beach, Destin, 30A, Santa Rosa Beach, Mexico Beach, and surrounding communities.

Contact Coastline Lift today for a free home evaluation and custom quote.
